Features
- Bolt-on fitment compatible with Jeep JL Wrangler 2018+
- Ultra-high intensity with custom-engineered TIR optics
- Brilliant amber backlight color for additional accent
- Torture-tested heavy-duty construction
- Control through factory aux switch bank using the included harness
- Assembled in USA
Overview
Perfect Fitment. The Bumper LED Pod Light Kit compatible with Jeep JL Wrangler 2018+ from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points. No cutting or drilling required!
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.
Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you(TM) re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There(TM) s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.
- Bolt-on fitment on 2018+ Jeep JL Wrangler
- Ultra-high intensity with custom-engineered TIR optics
- Brilliant amber backlight color for additional accent
- Torture-tested heavy-duty construction
- Assembled in USA
Information:

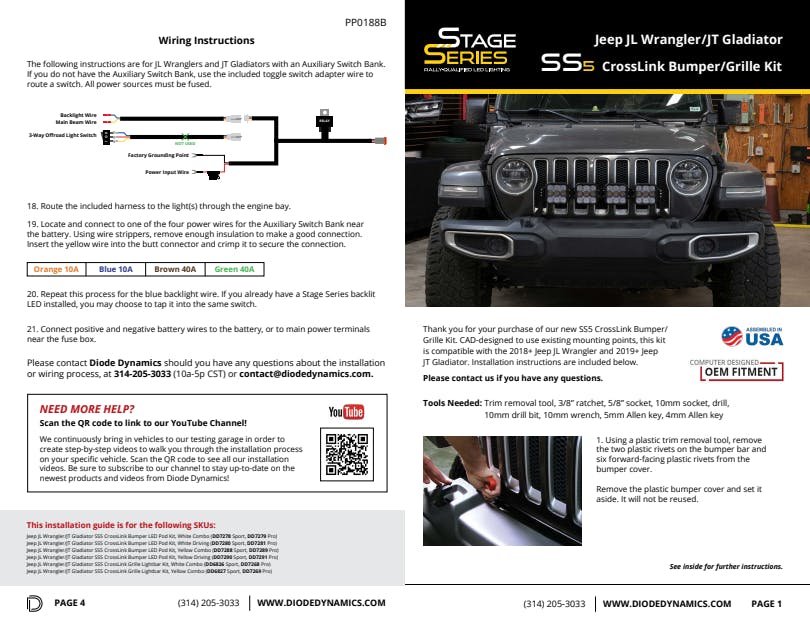

Included in the box: Two (2) Application-specific heavy-duty steel brackets for installation on 2018-2021 Jeep Wrangler. Two (2) Stage Series 5inch LED Pods. One (1) heavy-duty dual-output 4-pin wiring harness. Installation Guide. Mounting hardware.Application Summary:
| Year | Make/Model |
|---|---|
| 2020-2025 | Jeep Gladiator |
| 2018-2025 | Jeep Wrangler |
| Attributes | |
| Add-On | N/A, N/A |
| Base Color | Black, Black |
| Base Material | Steel, Steel |
| Bolt Grade | High |
| Bolt Thread Type | Medium, Medium |
| California Proposition 65 | Yes |
| Color Temp | 3000K, 3000K |
| Compliance Rating | SAE J581 Driving/Auxiliary High Beam Pattern, SAE J581 Driving/Auxiliary High Beam Pattern |
| Country of Origin (Primary) | US |
| Drilling Required | No, No |
| Hazardous Material Code | N |
| Input Power (watts) | 90, 90 |
| Intensity (lux) | 58,500 cd, 58,500 cd |
| Life Cycle Status Code | Available to Order |
| Measured Output (lumens) | 7,900 lm, 7,900 lm |
| Mounting Hardware Included | Yes, Yes |
| Operating Temperature | -40C to 85C (-40F to 185F), -40C to 85C (-40F to 185F) |
| SDR Required Flag | N |
| Sheen Level | Matte, Flat |
| Universal Or Specific Fit | Specific, Specific |
| Warranty Time | 8 |
| GTIN | 00195995126788 |
