2015-2017 Polaris RZR XP/XP4 1000 with naturally aspirated engine - Moderate/Aggressive Sound

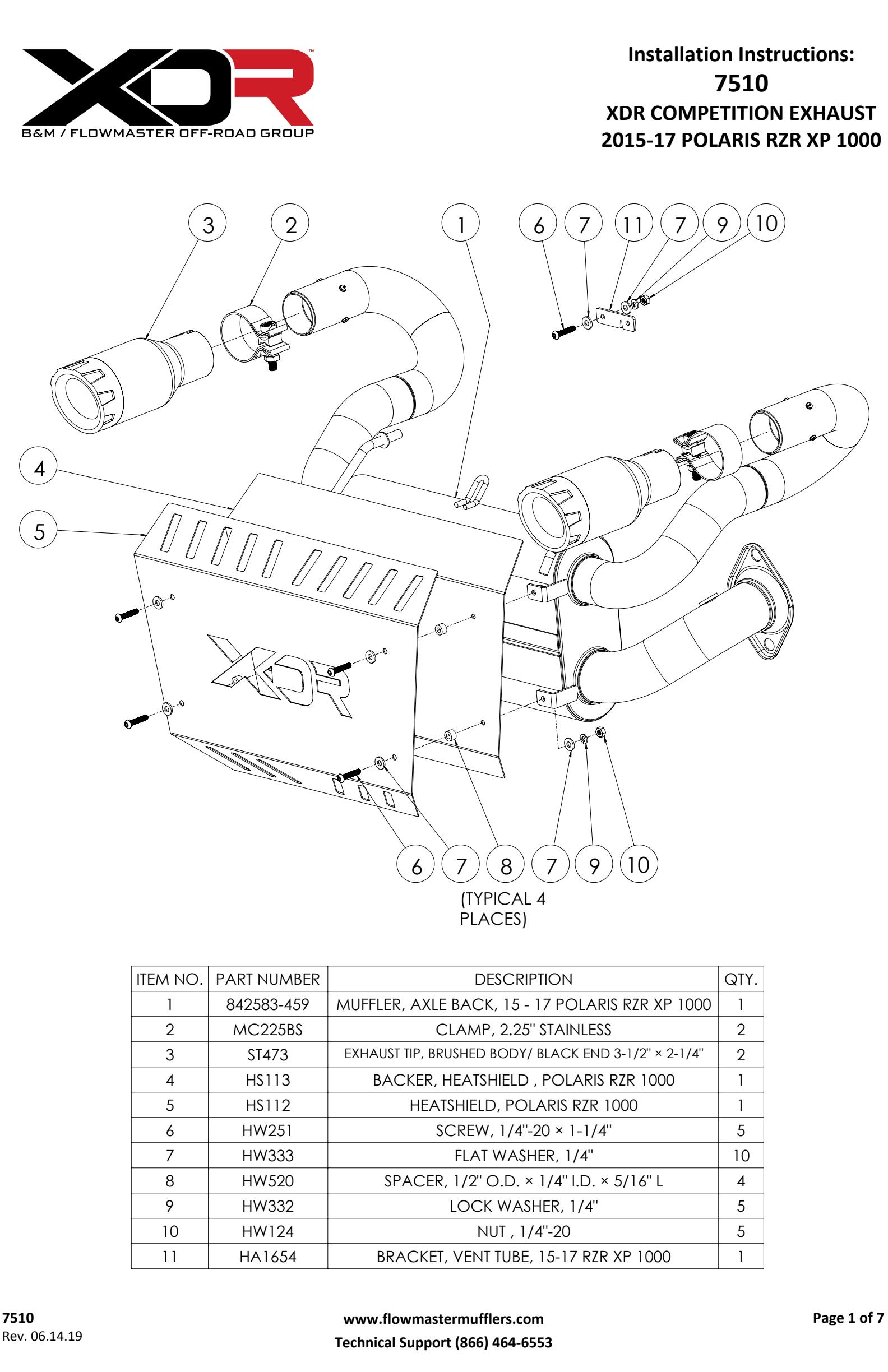

This bolt-on XDR Competition exhaust system is for the 2015-2017 Polaris RZR XP 1000 and XP4 1000 with the naturally aspirated engine. The system connects at the factory flanged connection and is firmly held in place using the factory rubber mounts and springs. Features include 409S stainless steel construction, a 2.50-inch mandrel-bent inlet tube flowing into the "straight-through" cross-flow XDR Competition muffler providing a deep moderate to aggressive sound level. The dual 2.25-inch mandrel-bent tailpipes are tucked up high within the rear fenders and contain USFS qualified spark arrestors, and are finished off with a pair of 3.50-inch brushed 304s stainless steel tips with black anodized aluminum end caps. The system comes with a custom black powder coated heat shield sporting a laser-cut XDR logo in the shield showing everyone behind you why you're RZR sounds so good. Includes all necessary hardware and detailed instructions for a simple at home installation. Note: This system does not include a catalytic converter and therefore is not emissions compliant for on-road or trail use. For Competition use only.
- 3.50" Brushed Dual Wall Tips with Black Anodized Aluminum Ends
- High Performance XDR Competition Muffler
- High Clearance Dual Exhaust Tailpipes
- Moderately Aggressive Deep Sound
- Stainless Steel Construction
- Quick and Easy Installation
- Lifetime Limited Warranty
- US Forest Service Qualified Spark Arrestor
Information:
2015-2017 Polaris RZR XP/XP4 1000 with naturally aspirated engine.
Application Summary:
| Year |
Make/Model |
| 2015-2017 |
Polaris RZR XP 1000 EPS |
| 2015 |
Polaris RZR XP 1000 EPS Desert Edition |
| 2015 |
Polaris RZR XP 1000 EPS Fox Edition |
| 2017 |
Polaris RZR XP 1000 EPS Gold Matte Metallic LE |
| 2015-2017 |
Polaris RZR XP 1000 EPS High Lifter Edition |
| 2017 |
Polaris RZR XP 1000 EPS Velocity Blue LE |
| Attributes |
| Assembly Required |
No, No |
| Bolt Hole Diameter (in) |
0.64, 0.64 |
| Brand |
XDR |
| C.A.R.B EO # |
No |
| California Legal |
No, No |
| California Proposition 65 |
Yes |
| CARB EO |
No |
| Category |
UTV |
| Clearance Category |
Exhaust |
| Compatible Brands/Models |
Polaris RZR, Polaris RZR |
| Components Included |
Muffler, Tips, Heatshields, Hardware and Instructions, Muffler, Tips, Heatshields, Hardware and Instructions |
| Country of Origin (Primary) |
US |
| Decibal Rating (dB) |
Not Available, Not Available |
| Discount Percentage |
5-25% |
| Emission Code |
4, 4, Off Road |
| Emission Code Description |
Legal for Racing Use Only |
| Exhaust Type |
Dual |
| Exit Location |
DOR, DOR |
| Exit Position |
Dual Rear |
| Flange Length (in) |
6.062, 6.062 |
| Flange Quantity |
1, 1 |
| Flange Thickness (in) |
0.984, 0.984 |
| Flange Width (in) |
4.016, 4.016 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Header Pipe Quantity |
Not Included, Not Included |
| Included Safety Features |
Heat Shield, Heat Shield |
| Inlet Inside Diameter |
2.500 in. |
| Life Cycle Status Code |
Available to Order |
| Material |
409 Stainless Steel |
| Mounting Hardware |
Yes, Yes |
| Mounting Hardware Included |
Yes, Yes |
| Mounting Hole Spacing (in) |
4.72, 4.72 |
| Mounting Method |
Bolt On, Bolt On |
| Muffler Body Height (in) |
9.75, 9.75 |
| Muffler Body Length |
17.000 in. |
| Muffler Body Length (in) |
17, 17 |
| Muffler Body Material |
409 Stainless, 409 Stainless |
| Muffler Body Width |
4 |
| Muffler Body Width (in) |
4, 4 |
| Muffler Color/Finish |
Natural, Natural |
| Muffler Configuration |
Single, Single |
| Muffler Inlet Count |
1, 1 |
| Muffler Inlet Inside Diameter |
2.39 |
| Muffler Inlet Inside Diameter(in) |
2.39, 2.39 |
| Muffler Internal Description |
Absorption, Absorption |
| Muffler Outlet |
2, 2 |
| Muffler Outlet Inside Diameter (in) |
2.14, 2.14 |
| Muffler Quantity |
1, 1 |
| Muffler Style |
Transverse, Transverse |
| Mufflers Included |
Yes, Yes |
| NAFTA Preference Criterion Code |
B |
| Number of Bolt Holes per Flange |
2, 2 |
| Overall Exhaust System Diameter |
2.25, 2.25 |
| part type |
Exhaust System Kit |
| Pipe Material/Type |
409 Stainless, 409 Stainless |
| Power Sport Item Type |
Rear Section Exhaust, Rear Section Exhaust |
| Product Type |
Exhaust Systems / Kits, Exhaust Systems / Kits |
| Sale Category |
Exhaust |
| SDR Required Flag |
N |
| Special Fitment Info |
Competition use only. Not emissions compliant, Competition use only. Not emissions compliant |
| System Color/Finish |
Natural, Natural |
| Tail Pipe Diameter |
2.250 in. |
| Tip Cut |
Angle, Angle |
| Tip Diameter |
3.500 in. |
| Tip Diameter (in) |
3.5, 3.5 |
| Tip Finish |
Polished/Black anodized, Polished/Black anodized |
| Tip Included |
Yes, Yes |
| Tip Length (in) |
8.5, 8.5 |
| Tip Material |
304 Stainless/Aluminum, 304 Stainless/Aluminum |
| Tip Quantity |
2, 2 |
| Tip Shape |
Round, Round |
| Tip Style |
Double Wall, Double Wall |
| Tubing Diameter |
2.500 in. |
| USFS Approved Spark Arrestor |
Yes, Yes |
| Warning |
California Proposition 65, California Proposition 65 |
| Y-Pipes Included |
No, No |
| GTIN |
00792898307322 |
