2016-2021 Yamaha YXZ1000R models - Moderate/Aggressive Sound

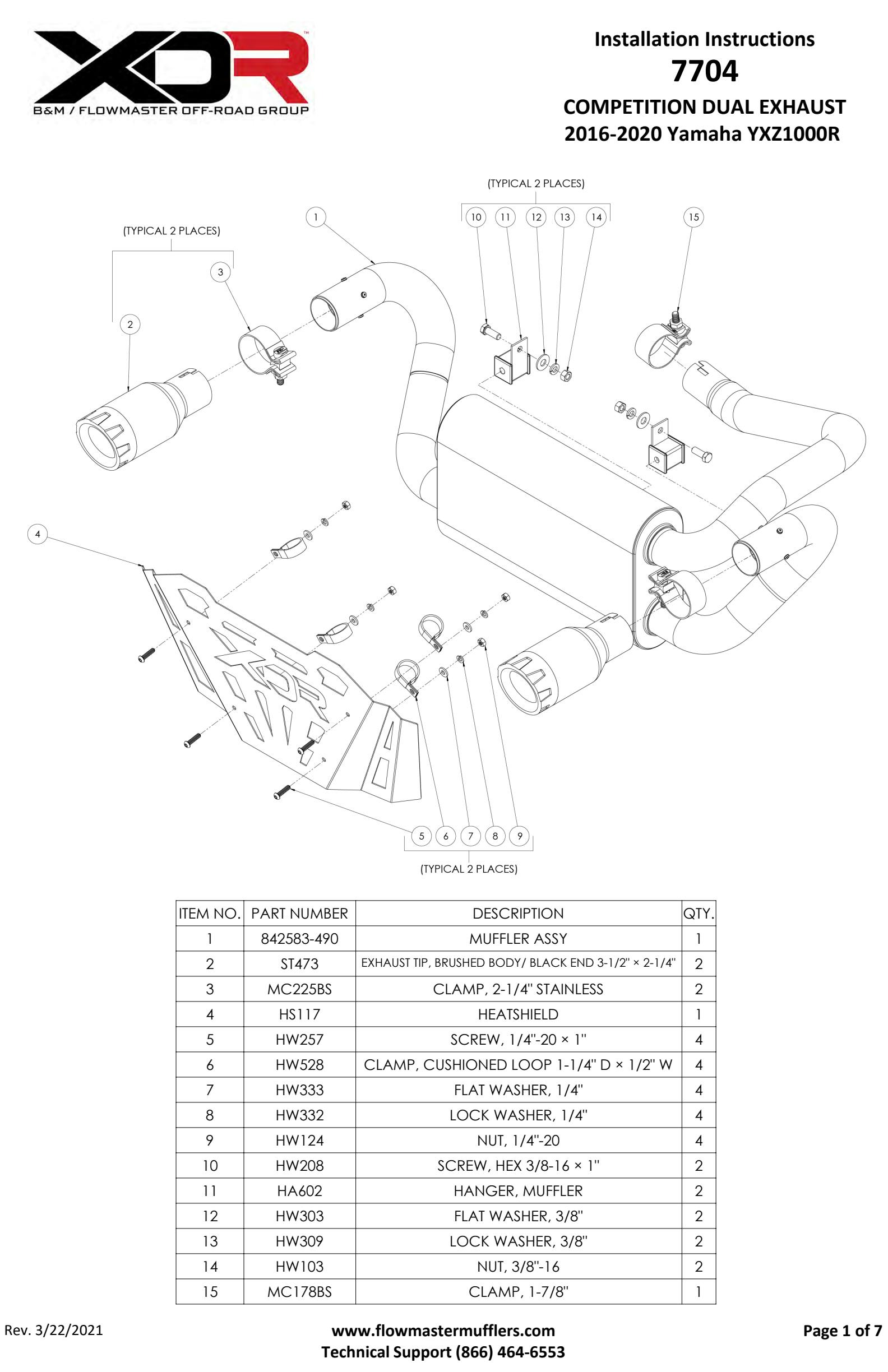

This bolt-on XDR Competition exhaust system fits 2016-2021 Yamaha YXZ1000R and features 409S stainless steel construction, connects at the factory slip-fit connection and is firmly held in place using the factory rubber mounts. The 2.25-inch mandrel-bent inlet tube flows into the XDR "straight-through" Competition cross-flow muffler providing a deep moderate to aggressive sound level. The dual 2.25-inch mandrel-bent tailpipes are tucked up high within the rear fenders and are finished off with a pair of 3.50-inch brushed 304s stainless steel tips with black anodized aluminum end caps. The system comes with a custom black powder coated heat shield with a laser-cut XDR logo with venting cut in the shield showing everyone behind you why your YXZ1000R sounds so good. Includes all hardware and installation instructions necessary for a simple at home installation. Note: This system does not include a catalytic converter and therefore is not emissions compliant for on-road or trail use. For Competition use only.
- High Performance XDR Competition Muffler
- High Clearance Dual Exhaust Tailpipes
- Full Stainless Steel Construction
- Quick and Easy Installation
- Large Mandrel-bent Tubing
- Lifetime Limited Warranty
Information:
2016-2021 Yamaha YXZ1000R models
Application Summary:
| Year |
Make/Model |
| 2016-2020 |
Yamaha YXZ1000R |
| 2016-2020 |
Yamaha YXZ1000R SE |
| 2017-2020 |
Yamaha YXZ1000R SS |
| 2017-2020 |
Yamaha YXZ1000R SS SE |
| 2020 |
Yamaha YXZ1000R SS XT-R |
| Attributes |
| Assembly Required |
No, No |
| Brand |
XDR |
| California Proposition 65 |
Yes |
| CARB (California) Compliant |
No, No |
| Category |
Exhaust |
| Clearance Category |
Exhaust |
| Compatible Brands/Models |
Yamaha YXZ 1000R, Yamaha YXZ 1000R |
| Components Included |
Muffler, Tips, Heatshields, Hardware and Instructions, Muffler, Tips, Heatshields, Hardware and Instructions |
| Country of Origin (Primary) |
US |
| Decibal Rating (dB) |
Not Available, Not Available |
| Discount Percentage |
5-25% |
| Emission Code |
4, 4, Off Road |
| Emission Code Description |
Legal for Racing Use Only |
| Exhaust Type |
Single |
| Exit Location |
DOR, DOR |
| Exit Position |
Rear |
| Flange Quantity |
Not Included, Not Included |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Header Pipe Quantity |
Not Included, Not Included |
| Included Safety Features |
Heat Shield, Heat Shield |
| Inlet Inside Diameter |
2.25-2.5 |
| Life Cycle Status Code |
Available to Order |
| Material |
409 Stainless Steel |
| Mounting Hardware |
Yes, Yes |
| Mounting Hardware Included |
Yes, Yes |
| Mounting Method |
Bolt On, Bolt On |
| Muffelr Body Width (in) |
4 |
| Muffler Body Height (in) |
9.75, 9.75 |
| Muffler Body Length |
17.000 in. |
| Muffler Body Length (in) |
17, 17 |
| Muffler Body Material |
409 Stainless, 409 Stainless |
| Muffler Body Width |
4 |
| Muffler Body Width (in) |
4 |
| Muffler Color/Finish |
Natural, Natural |
| Muffler Configuration |
Single, Single |
| Muffler Inlet Count |
1, 1 |
| Muffler Inlet Inside Diameter |
2.14 |
| Muffler Inlet Inside Diameter (in) |
2.14, 2.14 |
| Muffler Internal Description |
Absorption, Absorption |
| Muffler Outlet |
2, 2 |
| Muffler Outlet Inside Diameter (in) |
2.14, 2.14 |
| Muffler Quantity |
1, 1 |
| Muffler Style |
Transverse, Transverse |
| Mufflers Included |
Yes, Yes |
| NAFTA Preference Criterion Code |
B |
| Overall Exhaust System Diameter (in) |
2.25, 2.25 |
| part type |
Exhaust System Kit |
| Pipe Material/Type |
409 Stainless, 409 Stainless |
| Power Sport Item Type |
Rear Section Exhaust, Rear Section Exhaust |
| Product Type |
Exhaust, Exhaust Systems / Kits |
| Sale Category |
Exhaust |
| SDR Required Flag |
N |
| Special Fitment Info |
Competition use only. Not emissions compliant, Competition use only. Not emissions compliant |
| Sub Category |
Exhaust System Kit, Exhaust System Kit |
| System Color/Finish |
Natural, Natural |
| Tail Pipe Diameter |
2.250 in. |
| Tip Cut |
Angle, Angle |
| Tip Diameter |
3.500 in. |
| Tip Diameter (in) |
3.5, 3.5 |
| Tip Finish |
Polished/Black anodized, Polished/Black anodized |
| Tip Included |
Yes, Yes |
| Tip Length (in) |
8.5, 8.5 |
| Tip Material |
304 Stainless/Aluminum, 304 Stainless/Aluminum |
| Tip Quantity |
2, 2 |
| Tip Shape |
Round, Round |
| Tip Style |
Double Wall, Double Wall |
| Tubing Diameter |
2.250 in. |
| USFS Approved Spark Arrestor |
Yes, Yes |
| Warning |
California Proposition 65, California Proposition 65 |
| Y-Pipes Included |
No, No |
| GTIN |
00792898313231 |
